PAR-BIDI-SFP+10G-ER-40km

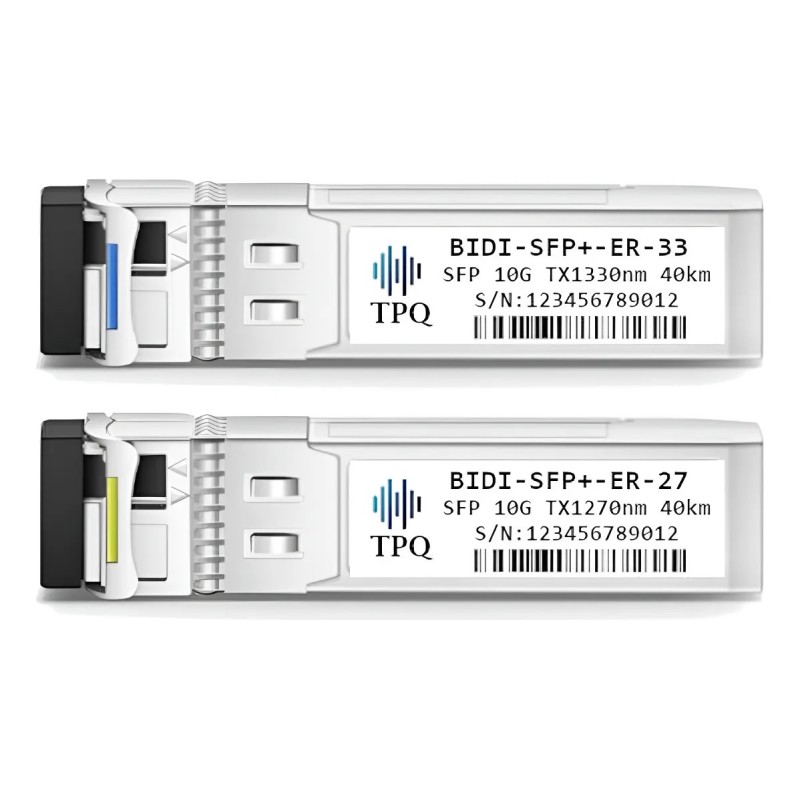

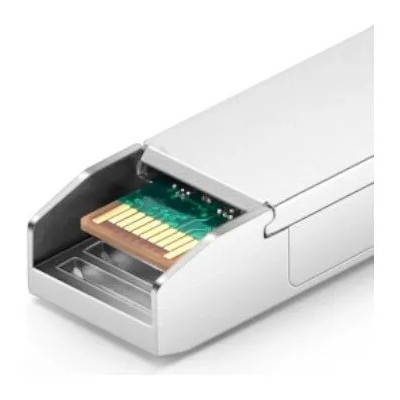

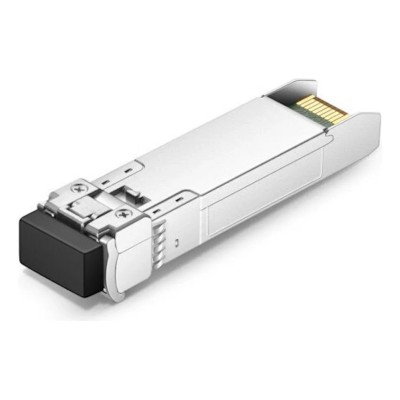

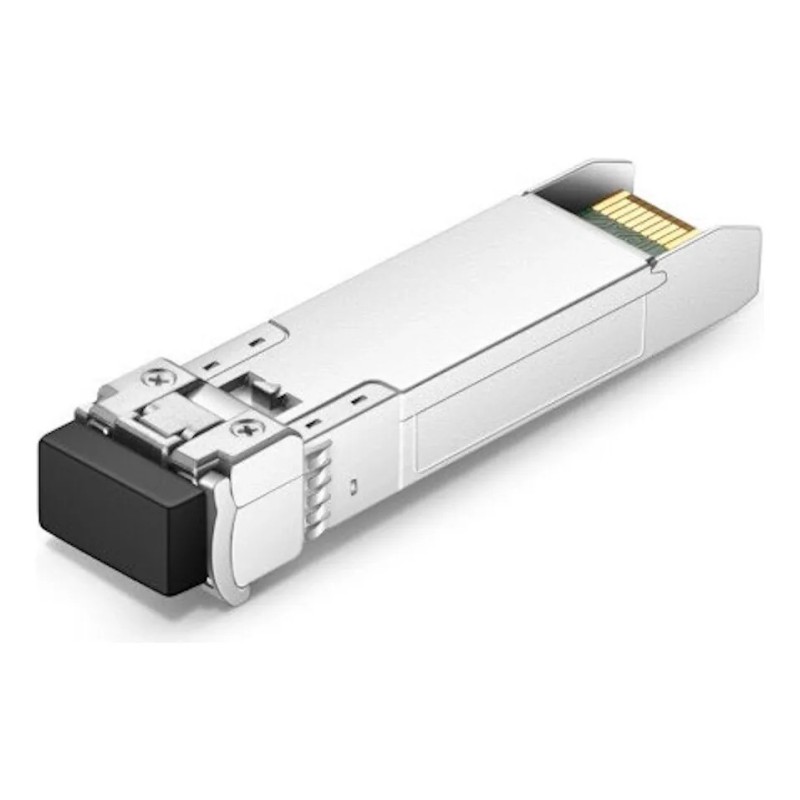

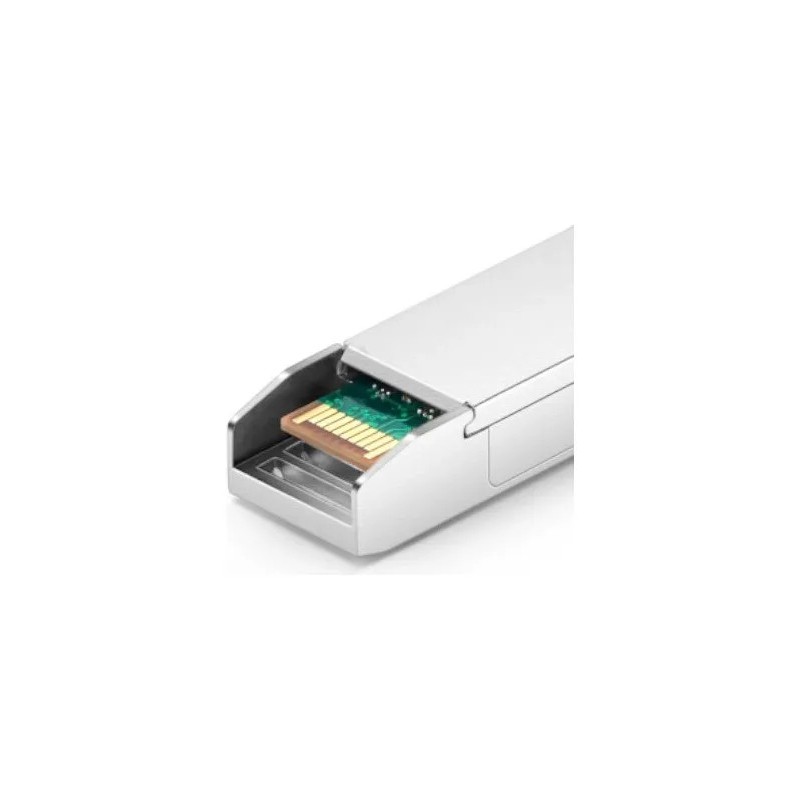

SFP+ 10G 40km PARES SM BIDI LC Optical Transceiver Module con DOM
Guarantee safe & secure checkout
SFP+ 10G 40km TX1270nm SM BIDI LC Optical Transceiver Module con DOM
| Especificaciones del Producto | |||
|---|---|---|---|
| Form Factor: | SFP+ | Data Rate: | 10Gbps |
| Wavelength: | 1270nm-TX/1330nm-RX | Distance: | 40km |
| Connector: | LC Simplex | Cable Type: | OS2 SMF |
| Transmitter Type: | DFB | Receiver Type: | PIN |
| TX Power: | +1~+5dBm | Receiver Sensitivity: | <-15dBm |
| Power Consumption: | <1W | Temperature Range: |
0 to 70°C (32 to 158°F)
|
| DDM: | Support | Bit Error Ratio (BER): | 1.00E-12 |
| Protocols: | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Warranty: | 3 Years |
SFP+ 10G 40km TX1330nm SM BIDI LC Optical Transceiver Module con DOM
| Especificaciones del Producto | |||
|---|---|---|---|
| Form Factor: | SFP+ | Data Rate: | 10Gbps |
| Wavelength: | 1330nm-TX/1270nm-RX | Distance: | 40km |
| Connector: | LC Simplex | Cable Type: | OS2 SMF |
| Transmitter Type: | DFB | Receiver Type: | PIN |
| TX Power: | +1~+5dBm | Receiver Sensitivity: | <-15dBm |
| Power Consumption: | <1W | Temperature Range： |
0 to 70°C (32 to 158°F)
|
| DDM: | Support | Bit Error Ratio (BER): | 1.00E-12 |
| Protocols: | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Warranty: | 3 Years |
PAR-BIDI-SFP+10G-ER-40km
Ficha técnica
- Material
- Metal
- Formato Optico
- SFP+
- Tipo de conector
- LC
- Compatibilidad
- MSA
- Data Rate
- 10GB
- Protocols
- IEEE 802.3ba
- Tipo de Fibra Optica
- MonoModo
