QSFP28-100G-LH4-20km

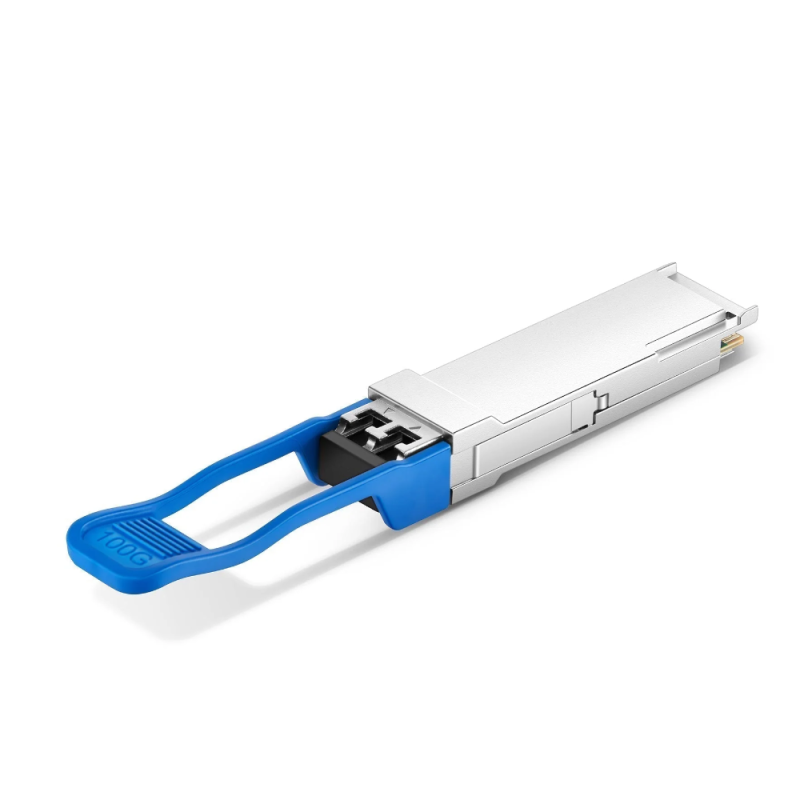

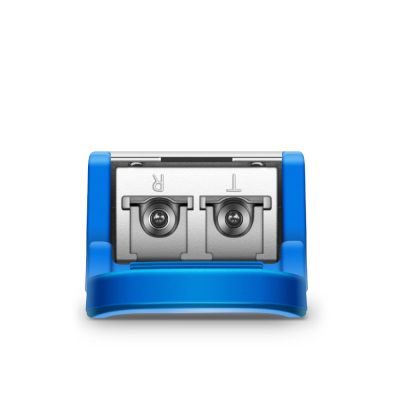

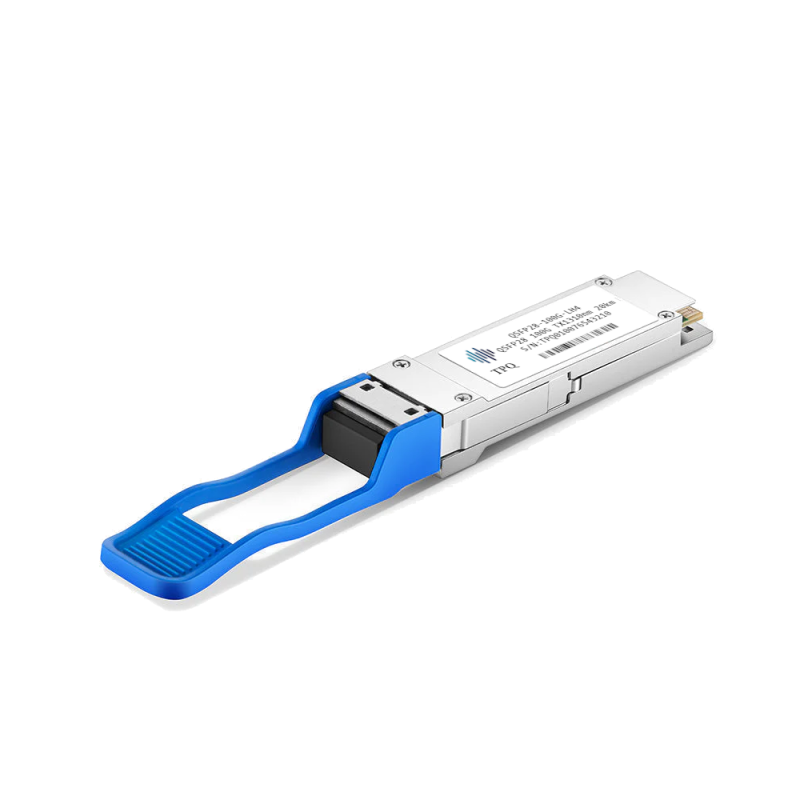

QSFP28 100G 20km TX1310nm SM Duplex LC Optical Transceiver Module con DOM
Guarantee safe & secure checkout
| Especificaciones del Producto | |||
|---|---|---|---|
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 1310nm | Max Cable Distance | 20km |
| Connector | Duplex LC | Cable Type | SMF |
| Transmitter Type | 4 x LAN WDM EML | Receiver Type | PIN |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -4.3~4.5dBm | Receiver Sensitivity | <-14.5dBm |
| Power budget | 10.2dB | Receiver Overload | 4.5dBm |
| Power Consumption | ≤3.5W | Extinction Ratio | 4dB |
| Packaging Technology | BOX Packaging | CDR (Clock and Data Recovery) | TX & RX Built-in CDR |
| Protocols | IEEE 802.3ba 100GBASE-LR4, QSFP28 MSA, SFF-8661, SFF-8636 | Application | 100G Ethernet, Data Center, 5G Wireless Network |
QSFP28-100G-LH4-20km
Ficha técnica
- Material
- Metal
- Formato Optico
- QSFP28
- Tipo de conector
- LC
- Compatibilidad
- MSA
- Data Rate
- 100GB
- Protocols
- QSFP28 MSA
- Tipo de Fibra Optica
- MonoModo
