QSFP28-100G-ER4-40km

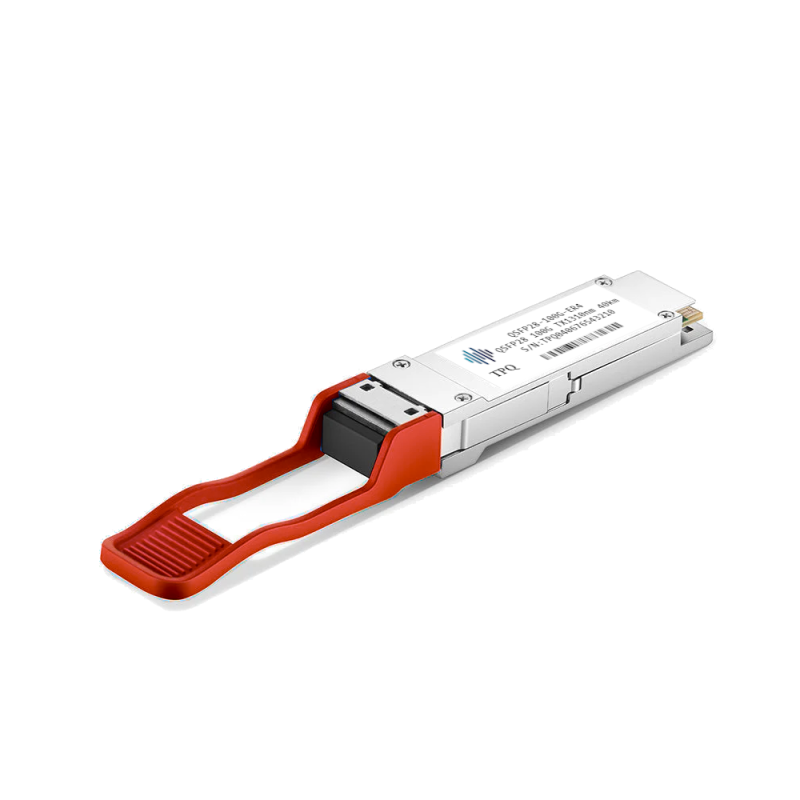

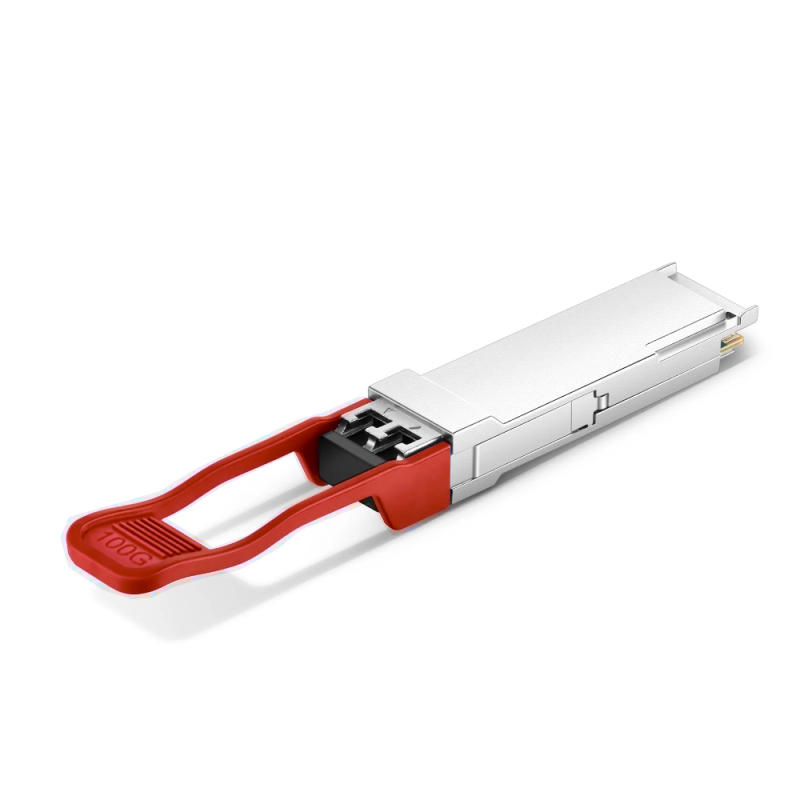

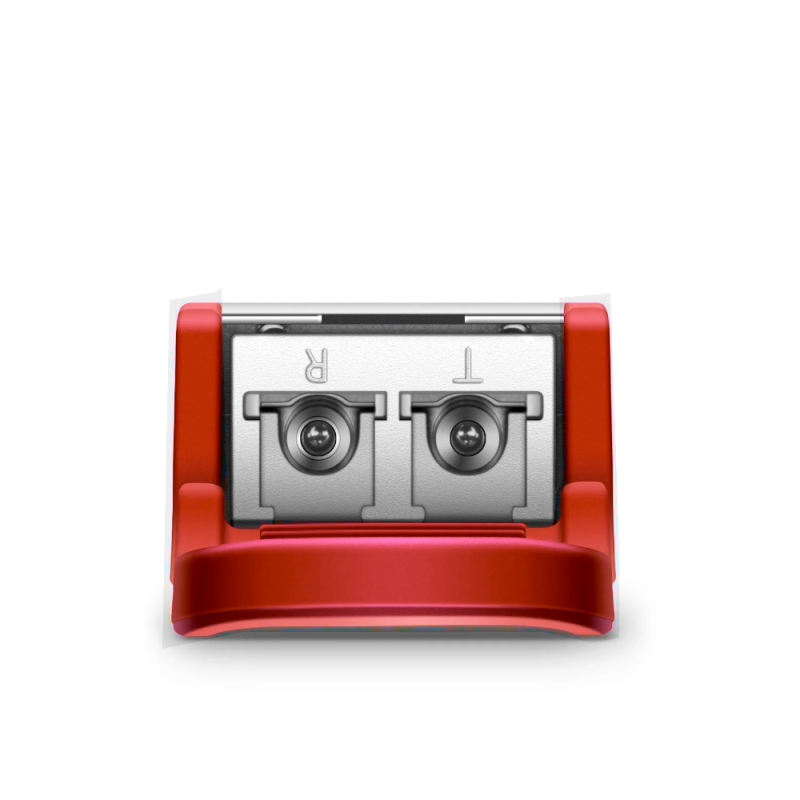

QSFP28 100G 40km TX1310nm SM Duplex LC Optical Transceiver Module con DOM
Guarantee safe & secure checkout
| Especificaciones del Producto | |||
|---|---|---|---|
| Form Factor: | QSFP28 | Data Rate: | 100Gbps |
| Wavelength: | 1295~1310nm | Distance: | 40km |
| Connector: | Duplex LC | Cable Type: | OS2 SMF |
| Transmitter: | 4x EML | Receiver Type: | SOA+PIN |
| TX Power: | 2.9~4.5dBm | Receiver Sensitivity: | <-20.9dBm |
| Power Consumption: | P≤4.5W | Temperature: | 0 to 70°C (32 to 158°F) |
| DDM: | Support | Bit Error Ratio (BER): | 1.00E-12 |
| Protocols: | IEEE 802.3ba 100GBASE-ER4 Lite, QSFP28 MSA | Warranty: | 3 Years |
QSFP28-100G-ER4-40km
Ficha técnica
- Material
- Metal
- Formato Optico
- QSFP28
- Tipo de conector
- LC
- Compatibilidad
- MSA
- Data Rate
- 100GB
- Protocols
- QSFP28 MSA
- Tipo de Fibra Optica
- MonoModo
