PAR-BIDI-SFP-1G-LH-32-20km

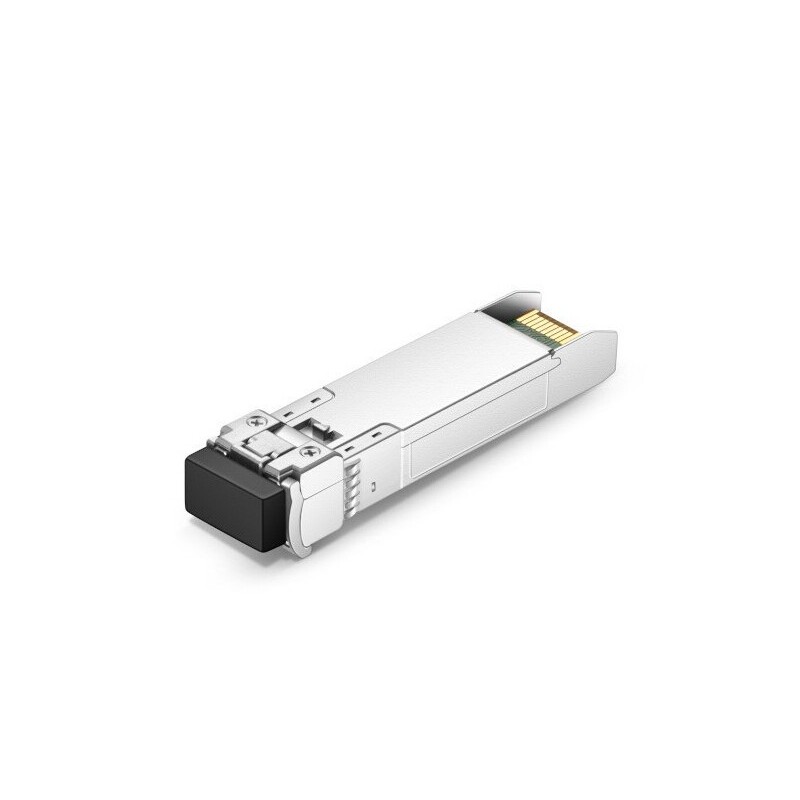

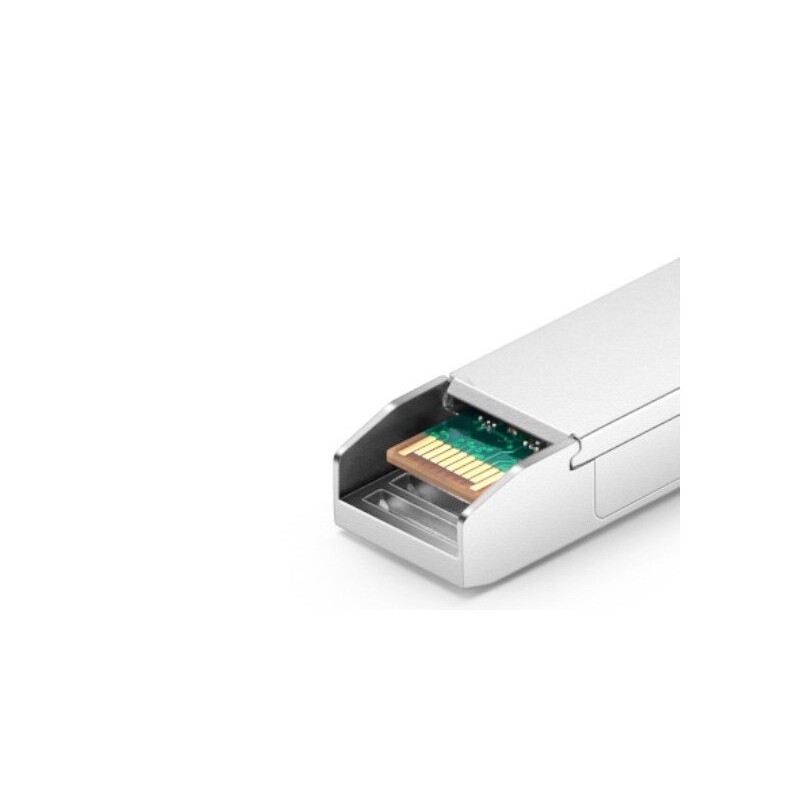

SFP 1G 20km PARES SM BIDI LC Optical Transceiver Module con DOM
Guarantee safe & secure checkout
SFP 1G 20km TX1550nm SM BIDI LC Optical Transceiver Module
| Especificaciones del Producto | |||
|---|---|---|---|
| Form Factor: | SFP | Data Rate: | 1.25Gbps |
| Wavelength: | 1550nm-TX/1310nm-RX | Distance: | 20km |
| Connector: | LC Simplex | Cable Type: | OS2 SMF |
| Transmitter: | FP | Receiver Type: | PIN |
| TX Power: | -9~-3dBm | Receiver Sensitivity: | <-22dBm |
| Power Consumption: | <1W | Temperature | 0 to 70°C (32 to 158°F) |
| DDM: | Support | Bit Error Ratio (BER): | 1,00E-12 |
| Protocols: | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Warranty: | 3 Years |
SFP 1G 20km TX1310nm SM BIDI LC Optical Transceiver Module
| Especificaciones del Producto | |||
|---|---|---|---|
| Form Factor: | SFP | Data Rate: | 1.25Gbps |
| Wavelength: | 1310nm-TX/1550nm-RX | Distance: | 20km |
| Connector: | LC Simplex | Cable Type: | OS2 SMF |
| Transmitter: | FP | Receiver Type: | PIN |
| TX Power: | -9~-3dBm | Receiver Sensitivity: | <-22dBm |
| Power Consumption: | <1W | Temperature | 0 to 70°C (32 to 158°F) |
| DDM: | Support | Bit Error Ratio (BER): | 1,00E-12 |
| Protocols: | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Warranty: | 3 Years |
PAR-BIDI-SFP-1G-LH-32-20km
Ficha técnica
- Material
- Metal
- Formato Optico
- SFP
- Tipo de conector
- LC
- Compatibilidad
- MSA
- Data Rate
- 1GB
- Protocols
- IEEE 802.3ba
- Tipo de Fibra Optica
- MonoModo
