QSFP+40G-LH4-20km

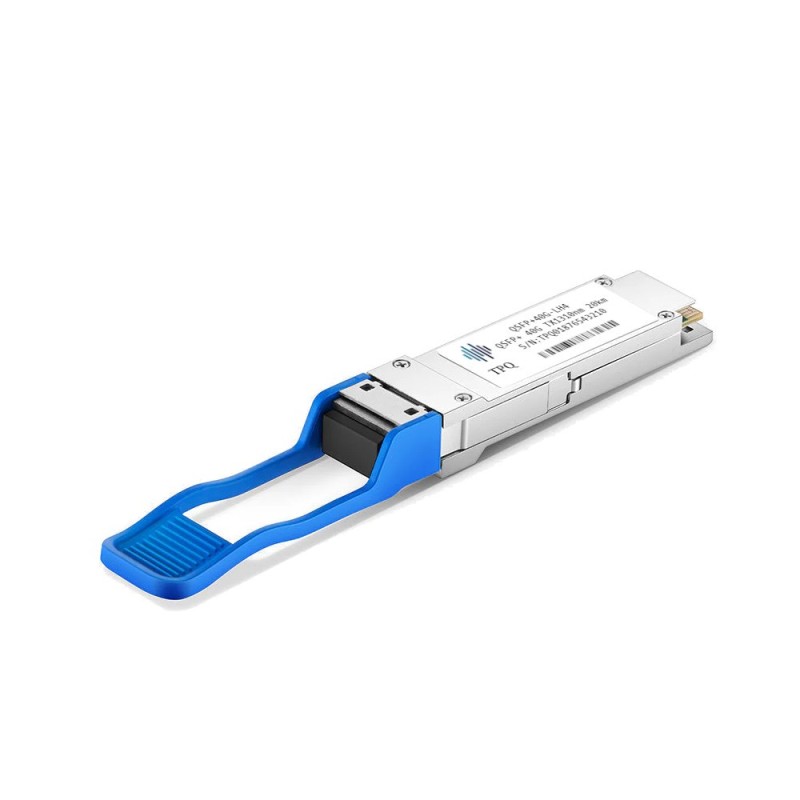

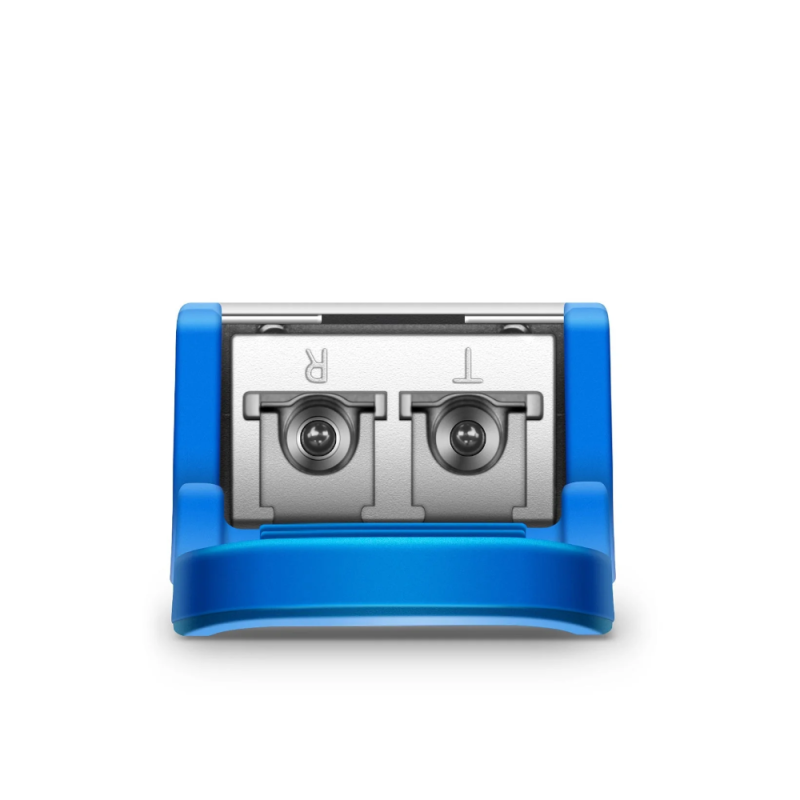

QSFP 40G 20km TX1310nm SM Duplex LC Optical Transceiver Module con DOM
Guarantee safe & secure checkout
| Especificaciones del Producto | |||
|---|---|---|---|
| Form Factor | QSFP+ | Data Rate | 40 Gbps |
| Wavelength | 1310nm | Distance | 20km@OS2 |
| Connector | LC Duplex | Cable Type | OS2 SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -4~2.3dBm | Receiver Sensitivity | <-11.5dBm |
| Power Consumption | <3.5W | Temperature | 0 to 70°C (32 to 158°F) |
| DDM | Support | Bit Error Ratio (BER) | 1E-12 |
| Protocols | QSFP+ MSA, SFF-8436, 40G Ethernet | Warranty | 3 Years |
QSFP+40G-LH4-20km
Ficha técnica
- Material
- Metal
- Formato Optico
- QSFP+
- Compatibilidad
- MSA
- Data Rate
- 40GB
- Protocols
- SFF-8636
- Tipo de Fibra Optica
- MonoModo
